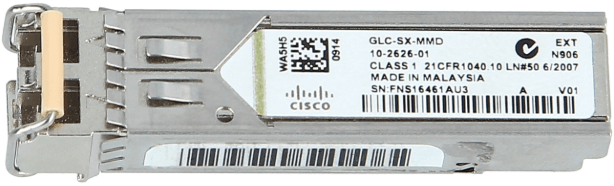

1000BASE-SX SFP for multimode fiber
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm
multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode
fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable.
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz*Km)*** | Operating Distance (m) |
|---|---|---|---|---|---|
| 1000BASE-SX(GLC-SX-MMD) | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
| 62.5 | 200 (OM1) | 275 (902 ft) | |||
| 50 | 400 (400/400) | 500 (1,640 ft) | |||
| 50 | 500 (OM2) | 550 (1,804 ft) | |||
| 50 | 2000 (OM3) | 1000 (3281 ft) |
