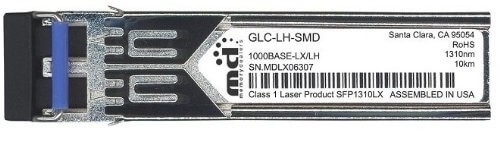

Cisco 1000BASE-LX/LH SFP for both multimode and single-mode fibers
The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode
fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode
fiber type, the transmitter should be coupled through a mode conditioning patch cable.
Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz*Km)*** | Operating Distance (m) |
---|---|---|---|---|---|
1000BASELX/LH(GLC-LH-SMD) | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
50 | 400 | 550 (1,804 ft) | |||
50 | 500 | 550 (1,804 ft) | |||
SMF | _** | _ | SMF -** |
