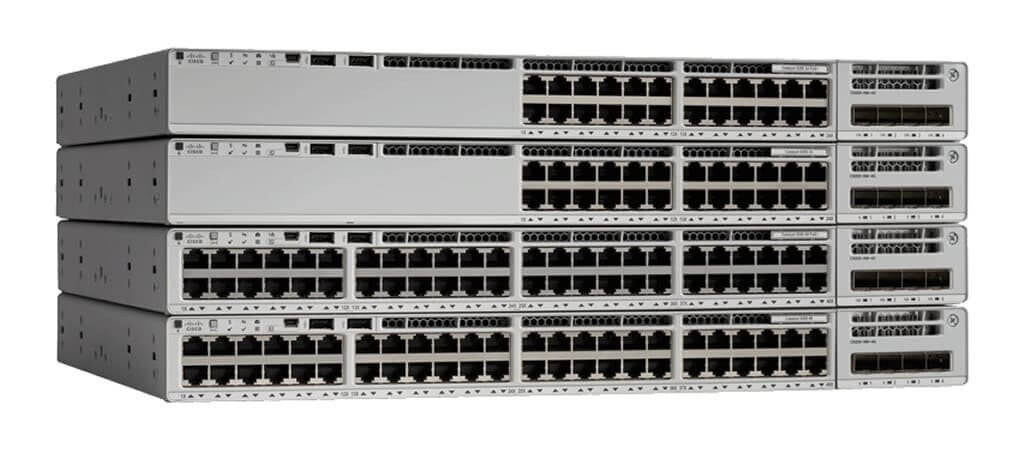

Extend intent-based networking everywhere. Cisco® Catalyst® 9200 Series switches
extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader
set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise
– it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help
customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation
and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking
journey. Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as
well as the software and all data that flows through the switch. It provides resiliency that keeps your business
up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC
technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Switch model | Downlinks total 10/100/1000 or PoE+ copper ports | Uplink configuration | Default primary AC power supply | Fans |
---|---|---|---|---|
Modular uplink models | ||||
C9200-24T | 24 ports data | Modular uplink options | PWR-C6-125WAC | FRU redundant |
C9200-24P | 24 ports full PoE+ | Modular uplink options | PWR-C6-600WAC | FRU redundant |
C9200-48T | 48 ports data | Modular uplink options | PWR-C6-125WAC | FRU redundant |
C9200-48P | 48 ports full PoE+ | Modular uplink options | PWR-C6-1KWAC | FRU redundant |
Model | Default primary power supply | Available PoE power with single primary power supply only* | Optional secondary power supply | Available PoE power with additional secondary power supply* |
---|---|---|---|---|
C9200-24P | PWR-C6-600WAC | 370W | PWR-C5-600WAC / PWR-C6-600WAC | 740W |
C9200-48P | PWR-C6-1KWAC | 740W | PWR-C5-1KWAC / PWR-C6-1KWAC | 1440W |
Description | Switching capacity | Switch capacity with Stacking | Forwarding rate | Forwarding rate with Stacking |
---|---|---|---|---|
C9200-24T | 128 Gbps | 288 Gbps | 95.23 Mpps | 214 Mpps |
C9200-24P | 128 Gbps | 288 Gbps | 95.23 Mpps | 214 Mpps |
C9200-48T | 176 Gbps | 336 Gbps | 130.95 Mpps | 250 Mpps |
C9200-48P | 176 Gbps | 336 Gbps | 130.95 Mpps | 250 Mpps |
