The digital transformation: Converged wired and wireless access and aggregation
The promise of digital for your business is all about innovating more quickly while reducing risk, cost, and
complexity. It will be your network that forms the foundation of your business’s transformation.But supporting
your digital organization will require your network to move beyond just connectivity to be a platform for
insights, automation, and security.

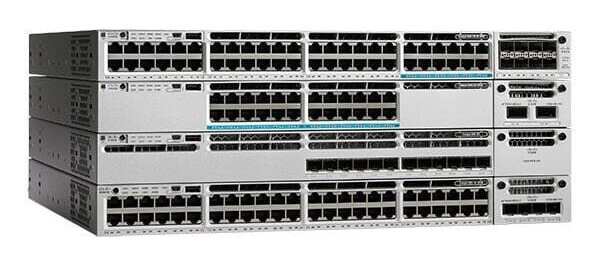

This is the power of the Cisco® Digital Network Architecture (Cisco DNA). Cisco DNA is a monumental shift on
how to design and build networks. The Cisco Catalyst® 3850 Series, as part of the Cisco DNA portfolio of
next-generation enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer
switches, securely enables time-saving virtualization, greater automation and valuable analytics data that
directly address your evolving business needs, including less cost to install and operate. The Cisco Catalyst
3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access.
The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch
and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application
optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480
technology.
The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE®), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.
Model | Total 10/100/1000 or SFP or SFP+ ports | Default AC power supply | Available PoE power | POE budget with 1100W secondary PS | StackWise-480 | StackPower |
---|---|---|---|---|---|---|
WS-C3850-24P | 24 PoE+ | 715WAC | 435W | 1535W | Yes | Yes |
WS-C3850-48P | 48 PoE+ | 715WAC | 435W |
Yes | Yes | |
WS-C3850-24T | 24 | 350WAC | |
Yes | Yes | |
WS-C3850-48T | 48 | 350WAC | Yes | Yes |
