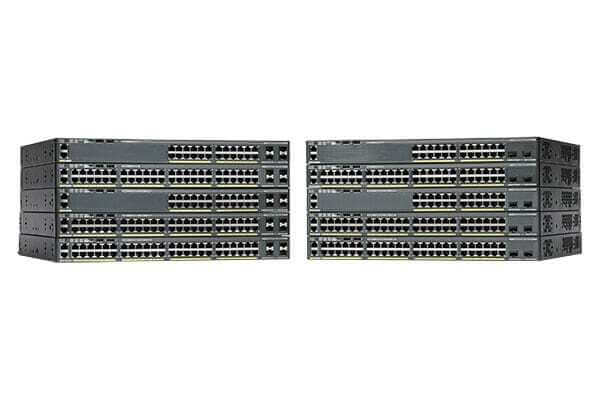

Cisco® Catalyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisco IOS® Software and support simple device management as well as network management. The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
| Model | 10/100/1000 Ethernet ports | Uplink interfaces | Cisco IOS Software image | Available PoE power | FlexStack-Plus and FlexStack-Extended capability |
|---|---|---|---|---|---|
| Cisco Catalyst 2960X-48LPD-L | 48 | 2 SFP+ | LAN Base | 370W | Y |
| Cisco Catalyst 2960X-24PD-L | 24 | 2 SFP+ | LAN Base | 370W | Y |
| Cisco Catalyst 2960X-48TD-L | 48 | 2 SFP+ | LAN Base | – | Y |
| Cisco Catalyst 2960X-24TD-L | 24 | 2 SFP+ | LAN Base | – | Y |
| Model | 10/100/1000 Ethernet ports | Uplink interfaces | Cisco IOS Software image | Available PoE power | Power supply | FlexStack-Plus and FlexStack-Extended capability |
|---|---|---|---|---|---|---|
| Cisco Catalyst 2960XR-48LPD-I | 48 | 2 SFP+ | IP Lite | 370W | 640WAC | Y |
| Cisco Catalyst 2960XR-24PD-I | 24 | 2 SFP+ | IP Lite | 370W | 640WAC | Y |
| Cisco Catalyst 2960XR-48TD-I | 48 | 2 SFP+ | IP Lite | – | 250WAC | Y |
| Cisco Catalyst 2960XR-24TD-I | 24 | 2 SFP+ | IP Lite | – | 250WAC | Y |
| Model | Maximum number of PoE+ (IEEE 802.3at) ports* | Maximum number of PoE (IEEE 802.3af) ports* | Available PoE power (single PS source) |
|---|---|---|---|
| Cisco Catalyst 2960X-48LPD-L | 12 ports up to 30W | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960X-24PD-L | 12 ports up to 30W | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960XR-48LPD-I | 12 ports up to 30W | 24 ports up to 15.4W | 370W |
| Cisco Catalyst 2960XR-24PD-I | 12 ports up to 30W | 24 ports up to 15.4W | 370 |
| Hardware specifications | |
|---|---|
| Flash memory | 128 MB for LAN Base and IP Lite SKUs, 64 MB for LAN Lite SKUs |
| DRAM | 512 MB for LAN Base and 256 MB for LAN Lite |
| CPU | APM86392 600 MHz dual core |
| Console ports | USB (Type B), Ethernet (RJ-45) |
| Storage interface | USB (Type A) for external flash storage |
