1G SFP transceiver, LC SX 500m OM2 MMF, for use with selected Aruba switches.

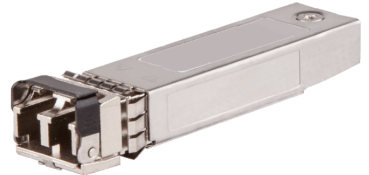

J4858D is an Aruba 1G SFP LC SX 500m OM2 MMF Transceiver
| J4858D Specification | |
|---|---|
| Product name (SKU) | Aruba 1G SFP LC SX 500m MMF XCVR (J4858D) |
| DOM - Digital Optical Monitoring (4x4 part #) | Yes (1990-4395 & 1990-4415) |
| Central wl (nm) | 850 |
| Fiber mode | MMF |
| Fiber diameter (µm) | Modal bandwidth (MHz*km) | Transmission distance | 50/125 | 500 (OM2), 400 | 550 m (1804.46 ft), 500 m (1640.42 ft) 62.5/125 | 200 (OM1), 160 | 275 m (902.23 ft), 220 m (721.78 ft) |
| Optical parameters (dBm) Transmit power | –9.5 to 0 |
| Optical parameters (dBm) Receive power | –17 to –3 |
| Product dimensions (H x W x D) | 0.6 x 2.2 x 0.5 in |
| Weight | 0.1 lb |
